reversible batching plant ecm-30 cum |
| To |
- |
| We Thank You For Your Enquiry. As Required By You, We Are Pleased To Quote Our Best Price For “ecs” make Mobile Concrete Batching Plant As Under |
- |

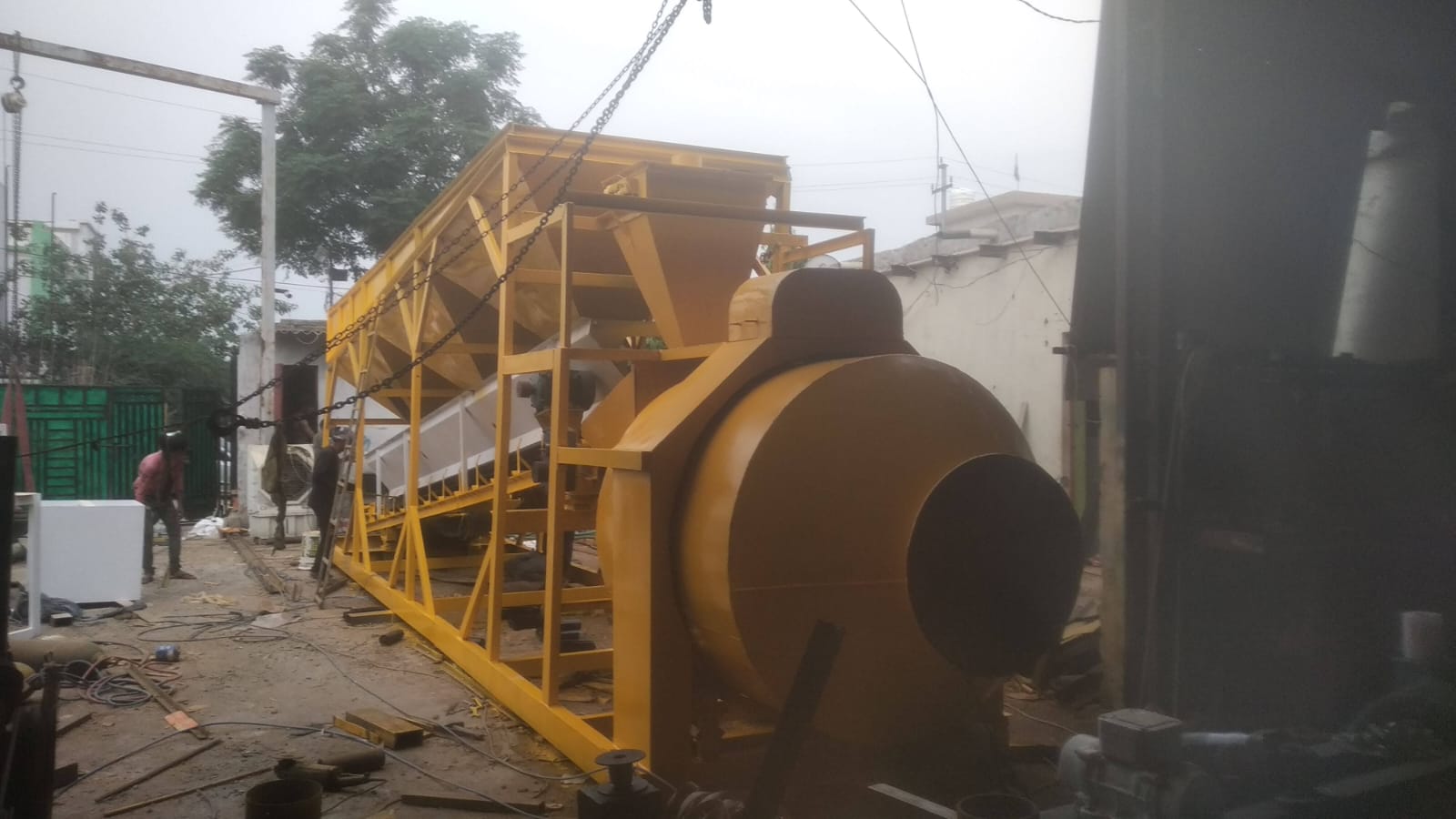

| “ecs” mobile Concrete Batching Plant, Model-ecm-15 |
|
| model |
ECM- 30 |
| Input Volume |
750 Ltr |
| Discharging Height |
1.6m |
| Max. Aggregate Diameter (screed/crushed Stone): |
80/60mm |
| Mixing Motor 10.0 H.p |
Mixer ‘jayem’ make the advantages of proper design, short mixing time, small consumption, low noise and fragile part’s long Service life. |
| 2. electric Control System |
Electric Control System is composed of host |
| Computer, Display, Communication Cable, |
Weighting meter and soon. |
| Operation And Management Are Incorporated Microcomputer Proportion Prescriptions Can Be Expressed By Digits, |
Easy to recognize by users. And it can preserve several Prescriptions. |
| It Has The Functions Of Error Analysis And Automatic Detection. |
Without automation, manual operation can still control the Mixing plant’s batching, mixing discharging, etc. |
| Introduction Of The System. |
This system has the features of advanced performance, high reliability, and beautiful appearance, etc. The control table adopts man-machine engineering and is comfortable to operate. |
| 3. hoisting System (technical Parameters) |
Aggregate hoisting system adopt belt conveyor |
| specification Of Belt |
B: 600 |
| Speed Of Belt |
1.0 m/s |
| system Instruction: |
Adopting high slope angle strap conveyor can save space. |
| Composition Of |
aggregate, silo frame weighing hopper, aggregate |
| Discharging Gate |
4 |
| Weighing Method |
cumulated metering Sensor: 1000x4 |
| Weighing Precision |
+2% |

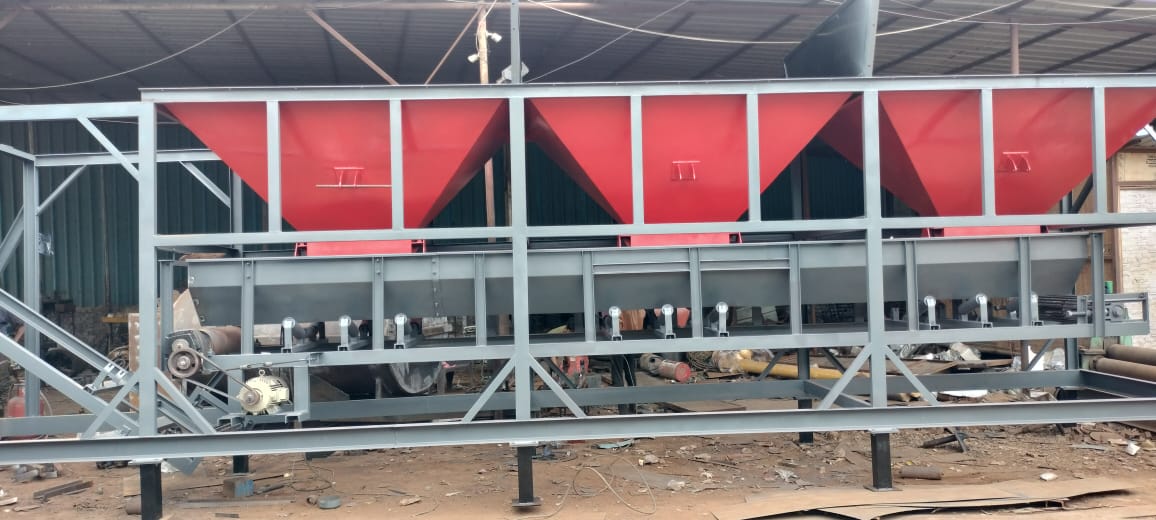

| System Introduction: |
Aggregate silo adopts loader to load materials. The bottom of aggregate is equipped with gates (pneumatic) loading machine, it depends on gas vat opening and closing the same time integrate microcomputer control. When batching, material gates can twitter in order to get the scale precision. |
| Aggregate Weighing Discharge Controlled By Microcomputer To Make Sure Precision. |
|
| 5. cement Weighing System (technical Parameters) |
Cement weight system is composed of cement weigh hopper, aerodynamic butterfly valve, sensor, etc. |
| 1. i) Cubage |
200L |
| Ii) Weighing Range |
0~350kg |
| Iii) Weighing Precision |
=+1% |
| 2. sensor |
500kgx2 |
| System Instruction: |
Cement weighing system is fully sealed by a seal device, the scale hopper is weighed by two sensors. |
| 6. water Dosing System |
Water dosing system consists of two numbers water pump capacity 6 LPS of each pump, control through PLC for discharging pre-determined quantity of water into the mixing drum. |
| Water Tank Volume |
130 Liters |
| Weighing Precision +/- 1% |
7. Pneumatic System |
| The Pneumatic System Consists Of Air Compressor, Gas Vat, And Electromagnetic Value Pneumatic Component, Pneumatic Jacks Etc |
Air compressor |
| Electromagnetic Valve. |
8. Cement screw conveyor |
| The Cement Delivery Adopts Full Seal Device There Are Flexible Connection In Discharging Gate And Scale Hopper, So As Not To Damage The Measure Precision. |
Material receiver gate is universal fetlock, which can adjust the angle warp and keep fine sealing. There is little room between screw blade and silo, with high delivery efficiency. |
| Optional: |
Control room |
| Rs |
- 145,000/- |
| For Tyre Mounter |
@ 120,000/- EXTRA (AS PER REQUIRED) |
| 2. admixture Dosing System |
Admixture dosing system consists of admixture pump, electromagnetic valve and so on. |
| Weighing Precision +/- 3% |
@ Rs. 190,000/- |
| Inbuilt Printing System But Printer Will Be In Client’s Scope. |
Inbuilt auto admixture dozing system.(Optional) |
| Easy To Shift As Plant Is Modular Construction. |
Computerised control panel with easy to operate functionality. |
| Plant Can Erect On Simple P.c.c Thus No Requirement Of Heavy Foundation Work At Site. |
PRODUCT |
| Brand Make Empower |
Mixer |
| Reversible Drum Mixer 1050 Liter. |
Capacity Per hour |
| 15 Cubm |
Pneumatic Cylinder For Storage Bin Gates |
| Janatic India Make/ Equivalent |
Cement Screw Conveyor |
| Wam India Make |
Pneumatic Actuator |
| Wam India Make/equivalent |
Air Compressor |
| Anest Iwata Japan Make |
Load Cells |
| Adi/asi Arteck |
Belt Conveyor Gear Box |
| Radicon/ingeco |
Electric Motors |
| Crompton/abb/bbl |
Electrical Cables |
| Empire/rr/havells |
Electric Switch Gear |
| Siemens/schneider Make |
Water Pumps |
| Crompton/kirloskar |
20 |
| Power Consumption |
MODEL |
| Ecm-15 |
Mixer H.P |
| 10.0 |
Belt conveyor H.P |
| 7.5 |
Water Pump H.P |
| 1.0 & 1.0 |
Cement Screw Conveyor H.P |
| 5.0 H.p |
Air compressor H.P |
| 1.0 |
Total H.P |
| “ecs” mobile Concrete Batching Plant, Model-ecm-20 |
1. Mixing System (Technical Parameters) |
| 20 Cubm |
Pneumatic Cylinder For Storage Bin Gates |
| Ecm-20 |
Mixer H.P |
| Quote –ecs/23-24/1503 |
Sir, |

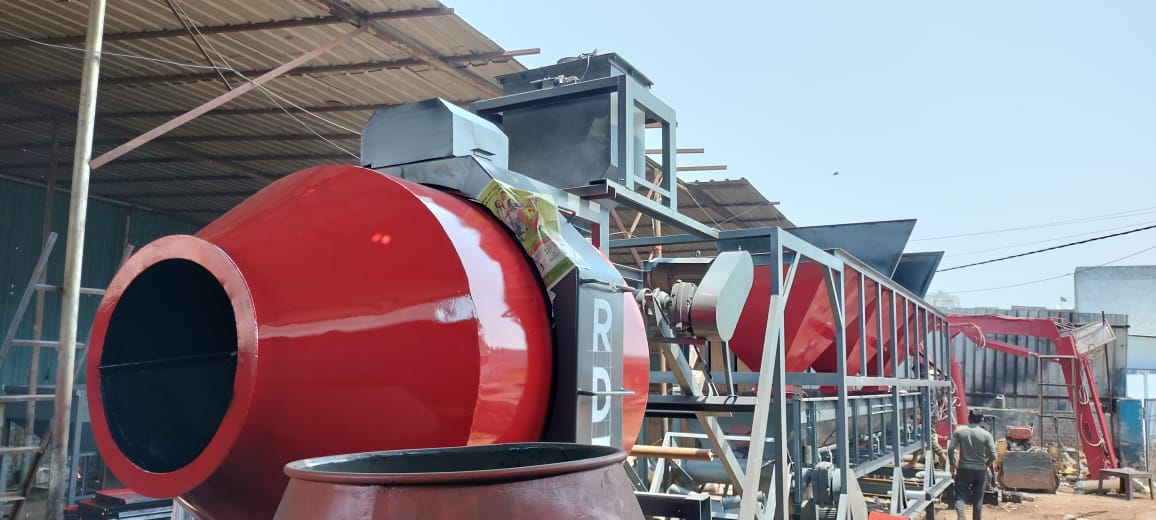

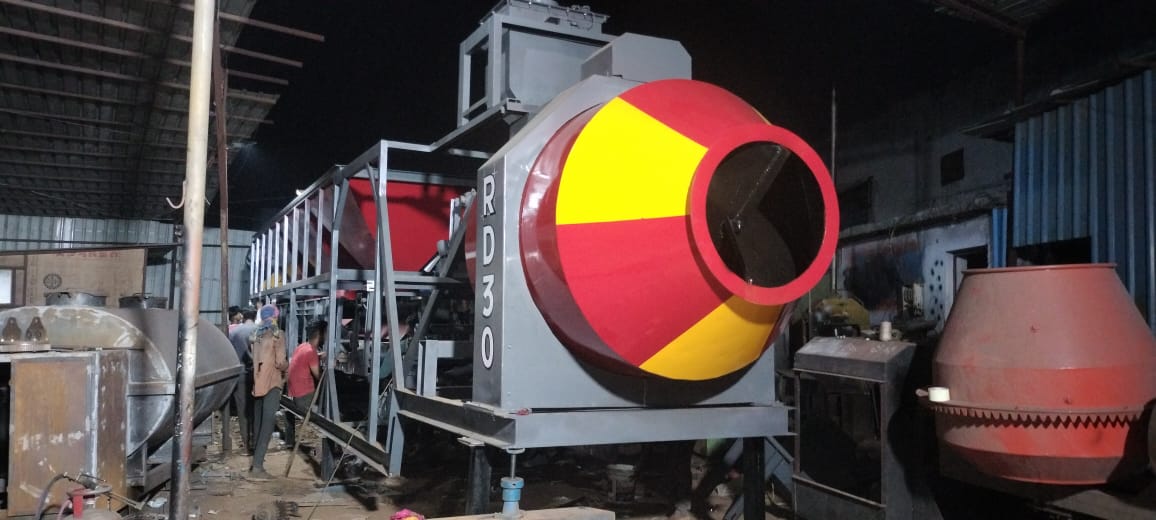

| “ecs” mobile Concrete Batching Plant, Model-ecm- 30 ( Reversible Mobile Type |
1. Mixing System (Technical Parameters) |
| Output Volume |
500Ltr |
| Mixing Motor 25 H.p |
Mixer ‘jayem’ make the advantages of proper design, short mixing time, small consumption, low noise and fragile part’s long Service life. |
| 6. water Weighing System |
Water weighing system consists of water pump, water scale hopper, electromagnetic and so on. |
| Water Weighing Volume |
250kg |
| Sensor |
500kgx1 |
| Weighing Precision=+1% |
7. Pneumatic System |
| The Pneumatic System Consists Of Air Compressor, Gas Vat, And Electromagnetic Value Pneumatic Component |
Air compressor |
| 9. Control Room |
Control room Applying colorful sandwich board, which has the functions of temperature preservation and heat insulation System instruction Spacious and bright control room broad view |
| @rs. 170,000 |
OPTIONAL: |
| 1. admixture Dosing System |
Admixture dosing system consists of admixture pump, electromagnetic valve and so on. |
| Technical Features: |
Inbuilt printing system but printer will be client’s scope. |
| Inbuilt Auto Admixture Dozing System.(optional) |
Easy to shift as plant is modular construction. |
| Computerised Control Panel With Easy To Operate Functionality. |
Plant can erect on simple P.C.C thus no requirement of heavy foundation work at site. |
| Product |
BRAND MAKE EMPOWER |
| Mixer |
Reversible type mixer 500 liter output batch (1150 kgs) |
| Capacity Per Hour |
30 cubm |
| Pneumatic Cylinder For Storage Bin Gates |
Janatic India Make |
| Cement Screw Conveyor |
Cosben |
| Bin Vibrator/cement Bin Vibrator |
Cosben |
| Pneumatic Actuator |
Cosben |
| Air Compressor |
Anest Iwata Japan Make |
| Load Cells |
ADI Arteck/ASI |
| Belt Conveyor Gear Box |
Radicon/Ingeco |
| Electric Motors |
Crompton/ABB |
| Electrical Cables |
Empire/RR/Havells |
| Electric Switch Gear |
Siemens/Schneider Make |
| Water Pumps |
Crompton/Kirloskar |
| Model |
ECM 30 Reversible Mixer |
| Batching Capacity In Ltr |
750 |
| Capacity Per Hour Cu.m |
30 |
| Weighing System Type |
Electronic load cell |
| No. Of Hopper Bin |
4 & 1(cement) |
| Mixer H.p |
25 |
| Belt Conveyor H.p |
10x1 |
| Water Pump H.p |
1,1 |
| Cement Screw Conveyor H.p |
10.0 |
| Air Compressor H.p |
2 |
| Vibrator H.p |
1.0x2 |
| Total H.p |
51 |
